Name: Francis Turbine Generator with Rated Discharge 12.2-30.4 m³/s Power 300kw-20MW and Voltage 6.3kv/10kv/20kv/35kv
Brand: Deyang Dongsen Hydropower Equipment Co., Ltd.
SKU: Francis HL-WJ OR LJ
Price: 220000 USD
Availability: InStock

Huis > producten > Francis Turbine Generator >

Francis Turbine Generator with Rated Discharge 12.2-30.4 m³/s Power 300kw-20MW and Voltage 6.3kv/10kv/20kv/35kv

Francis hydro turbine generator stainless steel

1000rpm Francis turbine renewable energy

stainless steel runner hydro turbine

Merknaam:

Dongsen-DSSD HYDROPOWER

Certificering:

ISO,CE,TUV

Model Number:

Francis HL-WJ OR LJ

Contacteer ons

Verzoek om een Citaat

Productdetails

Isolatieklasse:

F/f

Excitatieapparaat:

5 in 1 geïntegreerd bedieningspaneel

Spanning:

6,3 kv/10 kv/20 kv/35 kv

Ontwerpsnelheid:

1000R/min

Stroom:

300 kW-20MW

Nominale vrijgave:

12,2-30,4 m3/s

Originele plek:

Sichuan, China

Nominale frequentie:

50Hz/60Hz

Betaling & het Verschepen Termijnen

Minimum Order Quantity

1 Set

Prijs

220000

Verpakking Details

Houten koffers+plastic film

Delivery Time

120 Days

Payment Terms

T/T/LC

Supply Ability

500 Per Year

VERWANTE PRODUCTEN

Design Speed 1000rmin Francis Turbine Generator Horizontal Or Vertical Layout Pattern Designed For Water Flow Conversion

Krijg Beste Prijs

Stainless Steel Runner Material Francis Water Turbine Generator Original Place Hydropower Solution for Industrial Applications

Krijg Beste Prijs

5 In 1 Integrated Control Panel Francis Turbine Generator Offering 12 To 24 Blades and Power Range 300kw 20MW Designed for Energy Production

Krijg Beste Prijs

Grid Francis Turbine Generator Utilizing Stainless Steel Runner Material Offering Durable and Hydroelectric Power Production Solutions

Krijg Beste Prijs

Contacteer ons

008618990234753

tanjasmine551@gmail.com

Contact nu

Productomschrijving

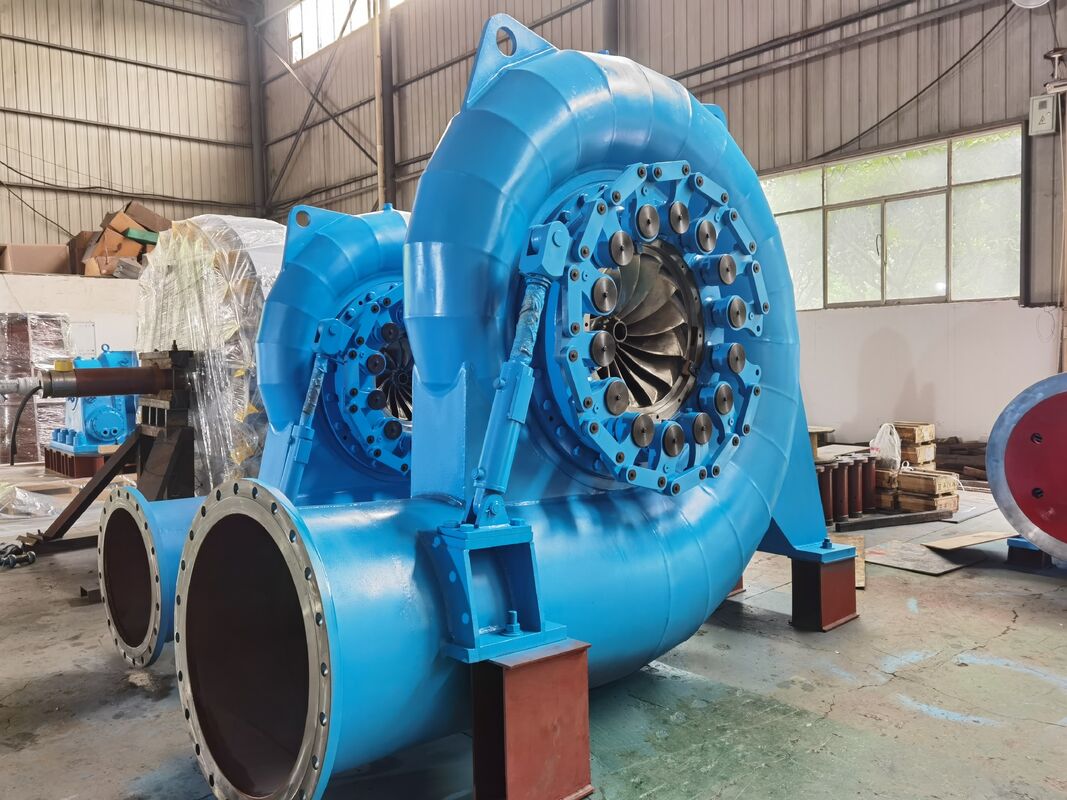

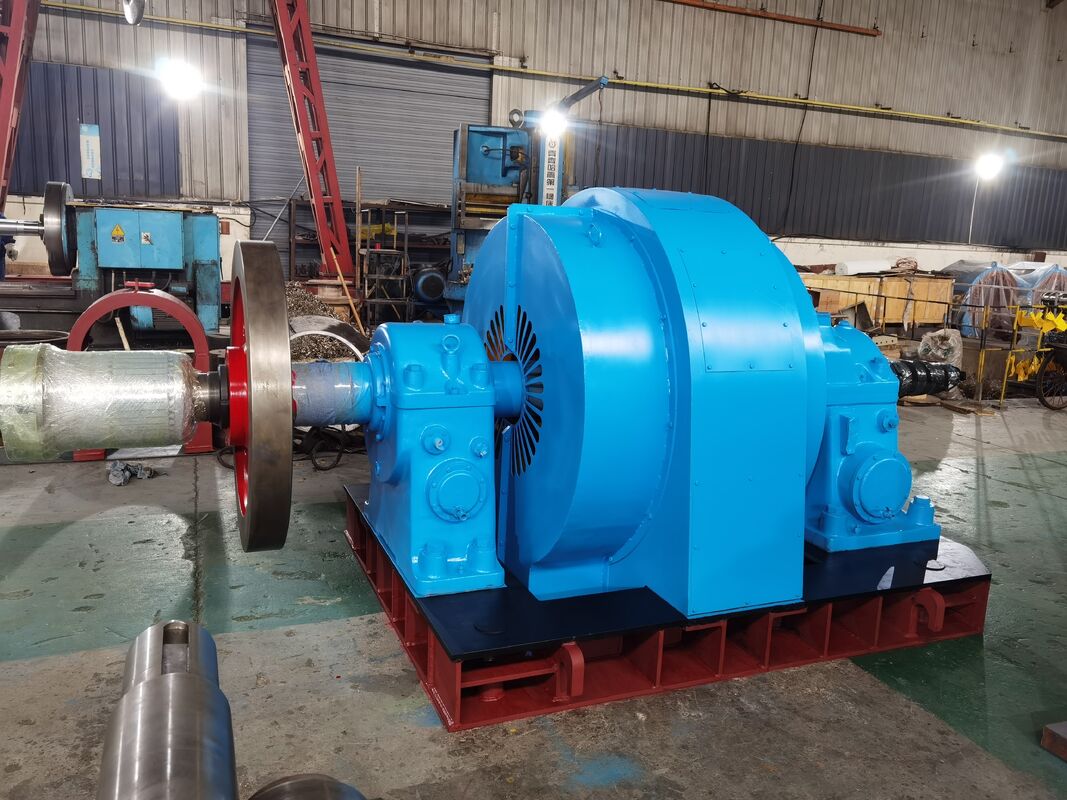

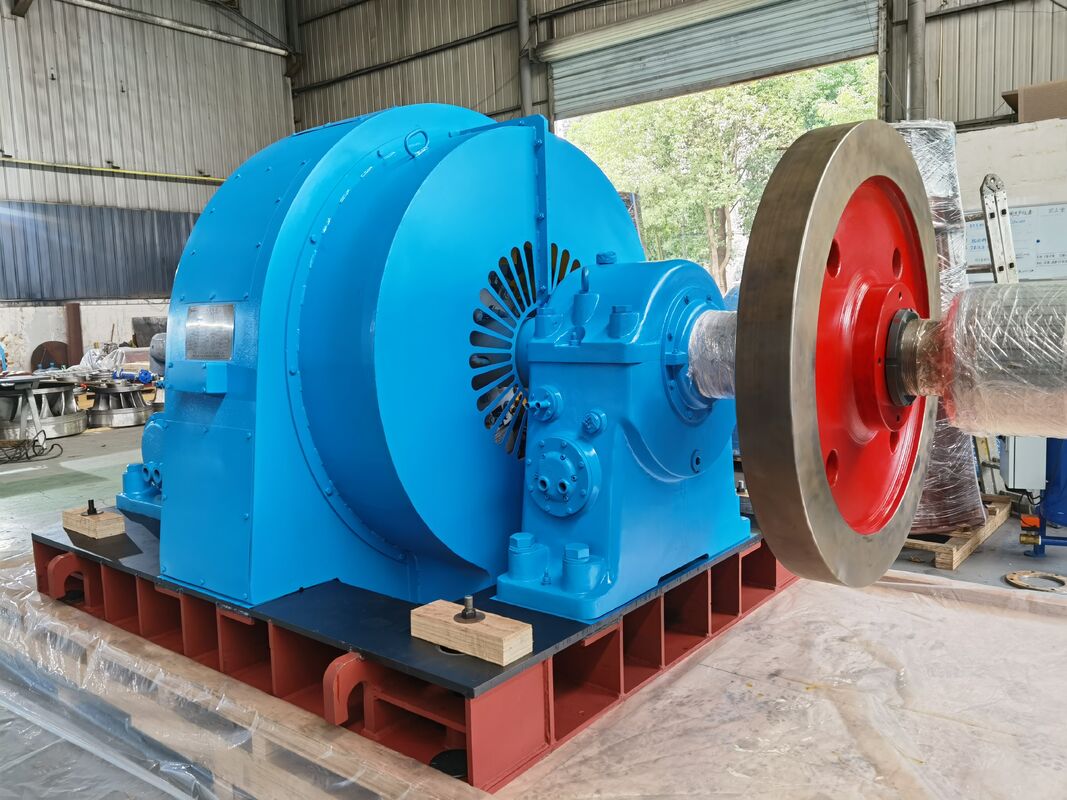

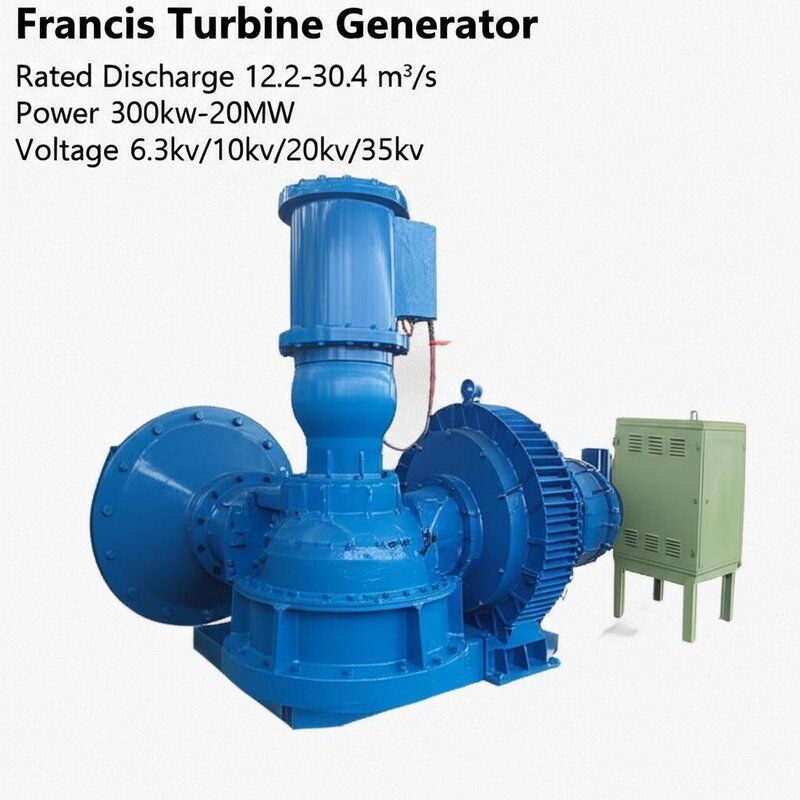

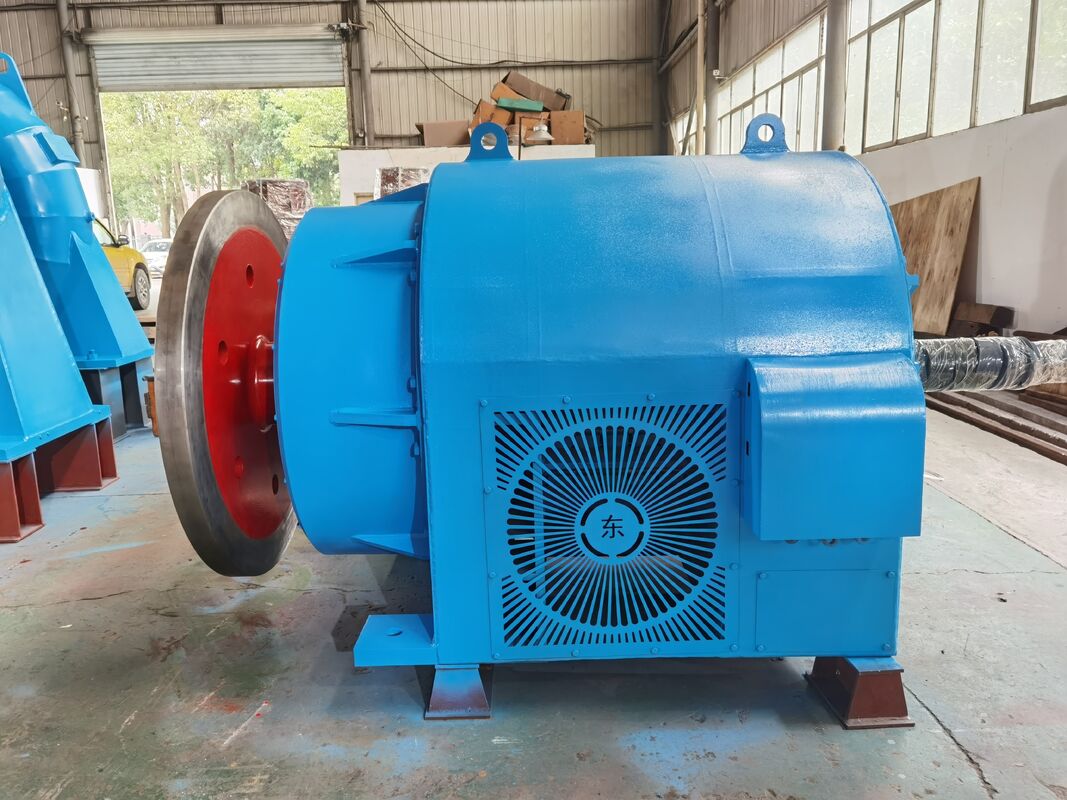

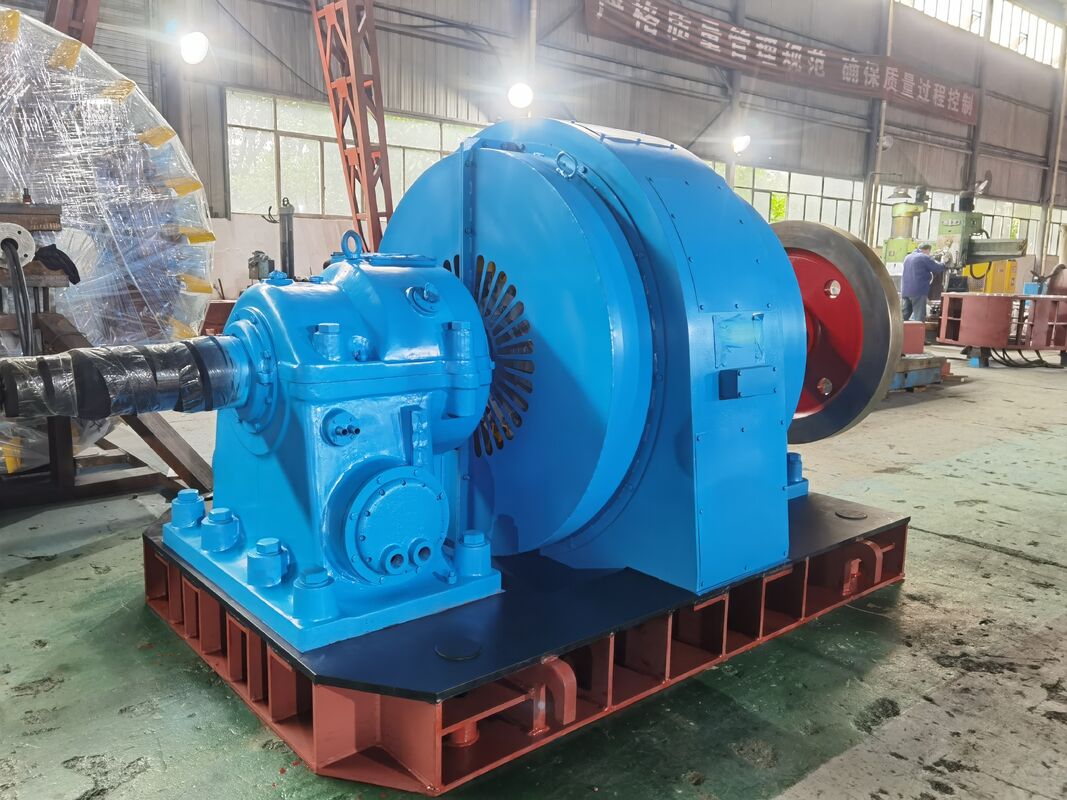

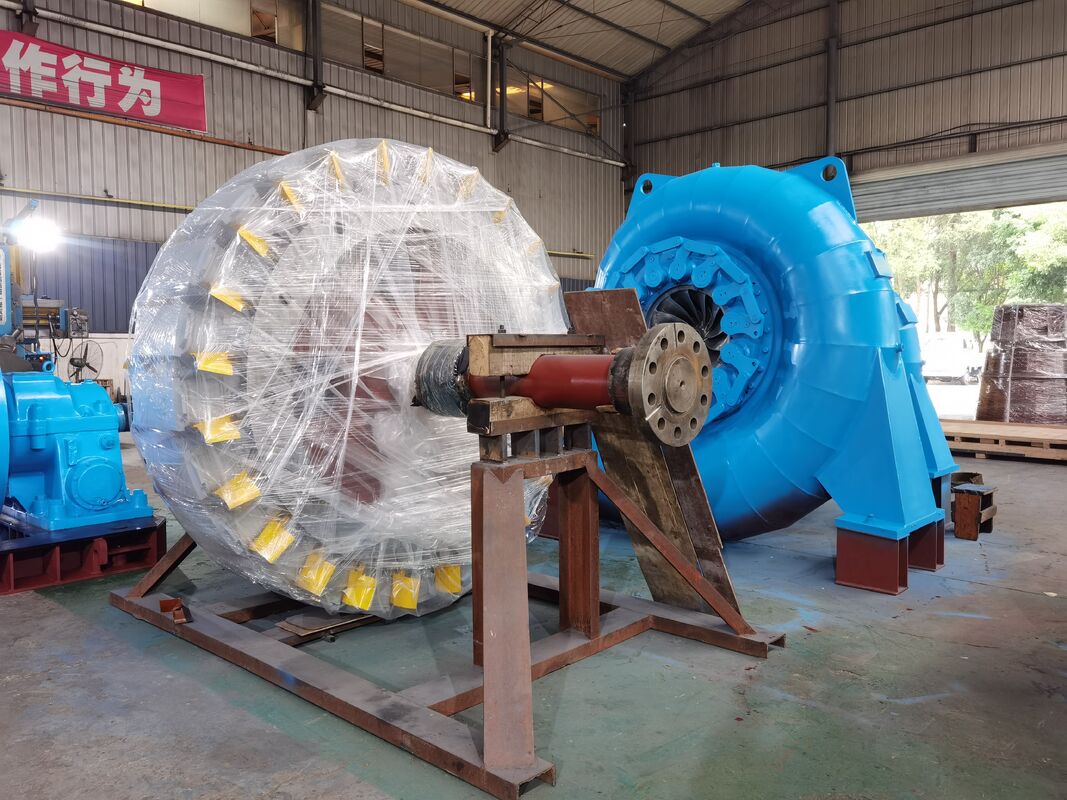

Francis Hydro Turbine Generator

Premium Stainless Steel Runner for Renewable Energy Systems

The Francis Turbine Generator is a highly efficient and reliable solution for hydroelectric power generation. Manufactured in Sichuan, China, this product combines robust construction with exceptional performance, achieving up to 95% efficiency. Its adaptable horizontal or vertical layout makes it suitable for diverse installation environments.

Key Features

Product Name: Francis Turbine Generator
Layout Pattern: Horizontal or Vertical
Rated Discharge: 12.2-30.4 m³/s
Design Speed: 1000 r/min
OEM Capabilities Available
Soft Start Startup Mode
High efficiency up to 95%
Advanced technology implementation

Technical Specifications

Excitation Device	5 In 1 Integrated Control Panel
Origin	Sichuan, China
Insulation Class	F/F
Voltage Options	6.3kv / 10kv / 20kv / 35kv
Layout Pattern	Horizontal Or Vertical
Design Speed	1000 r/min
Efficiency	Up To 95%
Rated Frequency	50Hz / 60Hz
Power Range	300kw - 20MW
Rated Discharge	12.2 - 30.4 m³/s

Applications

The Francis Turbine Generator is ideal for medium to large-scale hydropower plants, river basin installations, and dam facilities. Its high efficiency and soft start capability make it suitable for projects requiring operational stability and sustainable energy production. Applications include industrial power supply, mining operations, and irrigation systems.

Customization Options

Available in power ratings from 300kW to 20MW with 12-24 stainless steel blades. Choose between horizontal or vertical configurations to suit your project requirements. Certified to ISO, CE, and TUV standards with flexible OEM options available.

Support & Services

Comprehensive technical support including installation guidance, maintenance programs, troubleshooting, and staff training. We provide lifecycle support with upgrade and retrofitting services to maintain peak performance.

Packaging & Shipping

Each unit is securely packaged in custom wooden crates with protective padding. Weather-resistant packaging ensures safe transit worldwide. Includes complete documentation for easy installation and operation.

Frequently Asked Questions

What is the brand and model number?

Manufactured by Dongsen-DSSD HYDROPOWER, models Francis HL-WJ and HL-LJ.

Where is it manufactured?

Deyang, China.

What certifications does it have?

ISO, CE, and TUV certified.

What is the minimum order quantity and price?

1 set at approximately $220,000.

What are the delivery terms?

120 days after order confirmation, packaged in wooden cases.
